Special Edition 12'

The Special Edition 8012 features a bathroom packed with storage and a roomy living area. Equipped with our largest sofa (76”), the 8’ wide living quarters boasts beautifully crafted knotty alder cabinets, elegant soft touch walls and ceilings, a bathroom pocket door, glass cook top, hidden screen door, 7’6” height, a sofa that jack knifes into a bed, and the recessed LED lights draw less electricity while staying cooler than traditional RV lights. The bathroom has two large closets and a spacious vanity area, as well as a round shower. The horse area features mangers, lined and insulated walls in the horse area, face guards on the drop feed doors, lower divider on the first stall, roomy 42” wide stalls, and a collapsible, removable rear tack.


  • Living Quarter
  • Trailer

Standard Features

15,000 BTU air conditioner
Raised panel alder hardwood cabinets
8 Cu. ft. 12v electric refrigerator
Recessed 2 burner cook top
with range hood and exhaust fan with light
Microwave oven
Formica counter tops
TV Antenna
AM/FM Stereo with
2 Interior and 2 exterior speakers
Allante walls and ceiling
Crown Moulding
Wainscot lower paneling
Vinyl or fabric sofa or dinette
Day/night shades
Vinyl flooring with carpeted bedroom
Wardrobe storage areas per plan
Heavy duty closet rods
Recessed LED lights
Pocket door to bathroom
Hidden screen door
Glass shower door
Towel bar, hook, ring and paper holder
Round shower
Skylight dome in shower
Top quality Sealand China toilet bowl
3 Way switch to horse area lights
Ceiling lights with wall switches
Exterior porch light
City water hook up
Fresh water tank with 12 volt demand water pump
Dual waste water holding tanks
Sewer dump hose and storage compartment
2, 20 lb. Propane tanks with automatic change over valve
6 Gallon LP gas water heater with automatic quick recovery
Water drains and water heater bypass for easy winterizing
20,000 BTU ducted furnace
Wall mount thermostat
Heavy duty 55 amp 12 volt power converter, battery charger
12 Volt charge line to truck
12 Volt battery disconnect switch
Single deep cycle RV battery
30 Amp marine style 36' power cord lifeline with 15 amp adapter
120 Volt exterior receptacle, GFI protected
Kitchen and bathroom receptacle, GFI protected
All wiring checked and rechecked at 1,080 volts
LP gas leak detector
Carbon Monoxide alarm
Smoke alarm and fire extinguisher
Monitor panel, freshwater, waste water and battery condition
Emergency exit windows
Tempered safety glass on all windows
Positive locks and screens on all windows
Full fiberglass insulation in floors, sidewalls and ceiling
Consumer protection seals
Code approved in all 50 states

Standard Features

Coupler Adjustable Gooseneck, 2 5/16"
Load Type Slant
Number of Horses 3 - 4 horse
Trailer Width 8' 0"
Inside Height 7' 6"
Stall Width 42"
Construction All aluminum
Floor All aluminum
Roof One piece aluminum
Exterior Full length extruded sides with prepainted aluminum skin
Nose Stainless Steel
Axles/Brakes Rubber torsion axles
4 Wheel electric brakes with safety breakaway
Wheels Aluminum
Tires Radial
Bumper Full width rear rubber bumper
Safety Lights LED clearance and tail lights
Landing Gear 7k Hydraulic jack
Spare Spare tire and wheel


Horse Area

Dividers Extruded lower divider for first horse,
Solid head and shoulder padded divider(s)
Rear Divider Telescopic rear divider for loading clearance and safety
Floor Mats In horse area
Head Doors Drop down head door with sliding window per stall
Face Guards Aluminum drop down face guards
Horse Door First stall access door with cam latch, black latch and window
Mangers Feed mangers with individual access doors
Walls Lined and insulated rump, head wall
and rear doors
Rump wall Sliding window per horse
Kick panel SunCoated kick panels - walls and rear doors
Rear Door Double rear doors with full height cam latch and a sliding window on load side door.
Vent Encased roof vent per horse stall
Interior Light Dome light in horse area and rear tack
Tie Ring 1 Outside and 2 inside tie rings per stall
Interior Door Center access door from horse area to bath
Rear Tack Collapsible rear tack with saddle rack, tack hooks and light
Tack Hooks 4 Tack Hooks
Saddle Rack Swing out saddle rack, saddle/horse


Popular Options

Skin colors: white, black, silver, charcoal, champagne



(Click for Larger View)

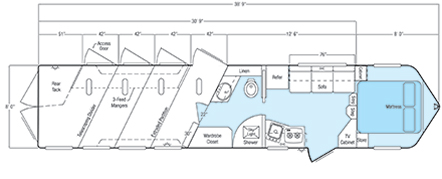

Sundowner Special Edition Living Quarter 8012 Floorplan

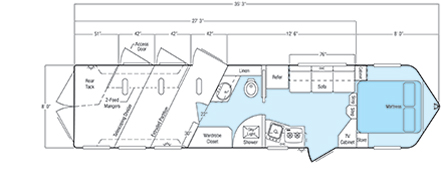

Sundowner Special Edition Living Quarter 8012 Floorplan

*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. See your dealer for warranty details.
