Rancher Express
The Rancher Express is the newest addition to our already popular stock trailer line-up. In 16’, 20’ and 24’ lengths the new Express Series is built with the same quality and standards people have come to expect from a Sundowner. Loaded with features such as heavy duty fenders, 4” I-beam cross members on 12” centers, slam latch gates, 2 side access doors and a 4” raised nose. The Express offers the features you want at a price everyone can afford.
Click to view a video of the Rancher Express
- Trailer
Standard Features |
|
Coupler | Adjustable gooseneck, 2 5/16" |
Trailer Width | 6' 9" |
Inside Height | 6'6" |
Length | 16', 20' or 24' |
Construction | All aluminum |
Floor | Interlocking extruded aluminum |
Exterior | Double wall extruded aluminum sides |
Wall Posts | 2" Upright wall posts welded on both sides |
Floor Cross Members | 4" Aluminum I-beam floor cross members on 12" centers |
Exterior Skin | Prepainted aluminum skin |
Air Spacing | 2 or 3 Air gaps with Plexiglas tracks |
Fenders | Heavy duty fenders |
Interior Lights | 1 Interior light inside stock area |
Center Gate | Swinging center gate (2 gates on 24') |
Calf Gate | Drop down calf gate |
Rear Gate | Rear gate with sliding calf gate |
Side Door | 2 Side access doors with full height cam latch |
Safety Lights | Extra LED clearance & marker lights |
Tail Lights | 4 Tail lights |
Axles/Brakes | Rubber torsion axles 4 Wheel electric brakes with safety breakaway |
Bumper | Rear rubber bumper |
Landing Gear | Drop leg jack |
Wheels/Tires | Aluminum wheels with radial tires |
Bed Clearance | 4" raised nose for extra bed clearance |
Popular Options |
|
Skin colors: white, black, silver, charcoal, champagne | |
Spare tire | |
Dome lights | |
Loading lights | |
Clearance lights | |
Plexiglas | |
Tackroom | |
Side ramp in lieu of one side door (48") | |
Slider in center gate | |
Bullet nose | |
Tapered nose |
*Some Photos Show Optional Equipment.

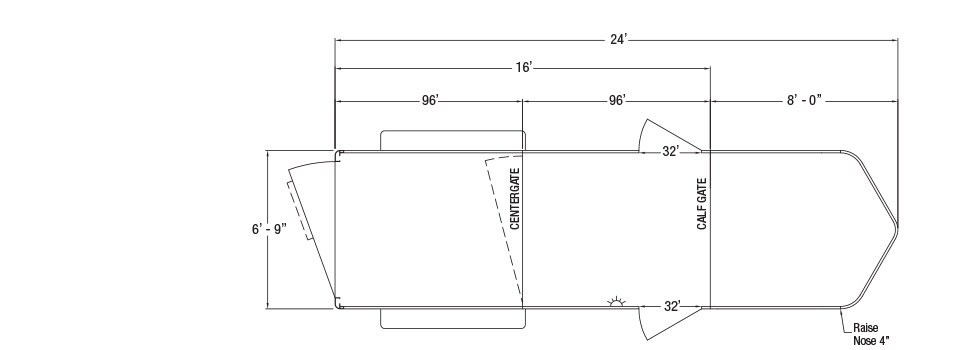

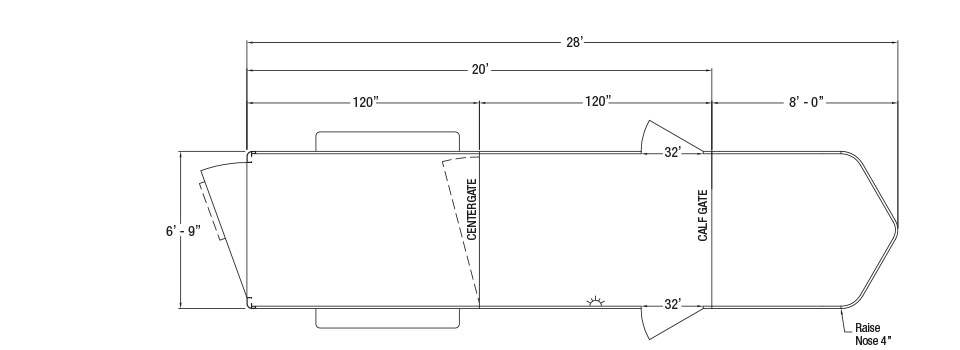

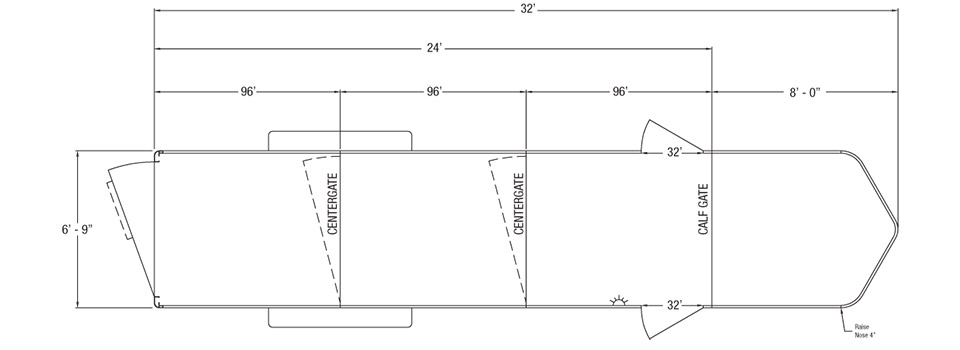

Floorplans
(Click for Larger View)
![](assets/floorplans/ExpressRancher16fp.jpg)
![](assets/floorplans/ExpressRancher20fp.jpg)
![](assets/floorplans/ExpressRancher24fp.jpg)
*All dimensions are approximate. Photos may show options. Due to constant product improvements, specifications, component parts, standard and optional equipment are subject to change without notice or obligation. Refer to standard and special features for specifics. See your dealer for warranty details.
